Reflex Greenbox
Product details
Identity data
EAN code
4036705662843
Brand
Reflex
Model
Greenbox
Product page
Description

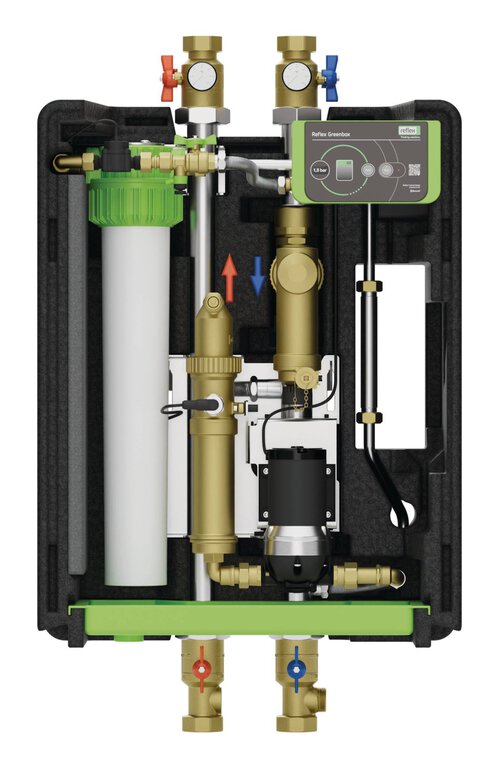

Reflex Greenbox S3, compact hydraulic module for water-carrying systems
Type
S3
Data
IFCExportAs
IfcDistributionElementType
IFCExportType
-
Weight
22.80 kg
Tender text
Reflex Greenbox Compact hydraulic module for closed heating and cooling systems. Functional unit comprising hydraulic part designed for wall mounting and electronic, ergonomically arranged controller with CE marking. The fully automatic hydraulic module offers the following functions in a compact housing with EPP insulation shell: -Vacuum spray tube degassing of dissolved gases -Dirt, sludge and magnetite separation -Water treatment (softening/demineralisation) -Controller with troubleshooting wizard and history in the app -Static pressure maintenance connection (MAG (expansion vessel)) -Water meter and conductivity sensor -Temperature and pressure measurement -Bluetooth connectivity
Electric connection
230V/50Hz
ETIMClass 9.0
EC004089
Export Type to IFC As
IfcDistributionElementType
Max. flow/return temperature
90/70 °C
Max. system volume
3.5 m³
Max. volume flow
4.3 m³/h
Type IFC Predefined Type
USERDEFINED
