Reflex Greenbox
Product details
Identity data
EAN code
4036705663598
Brand
Reflex
Model
Greenbox
Product page
Description

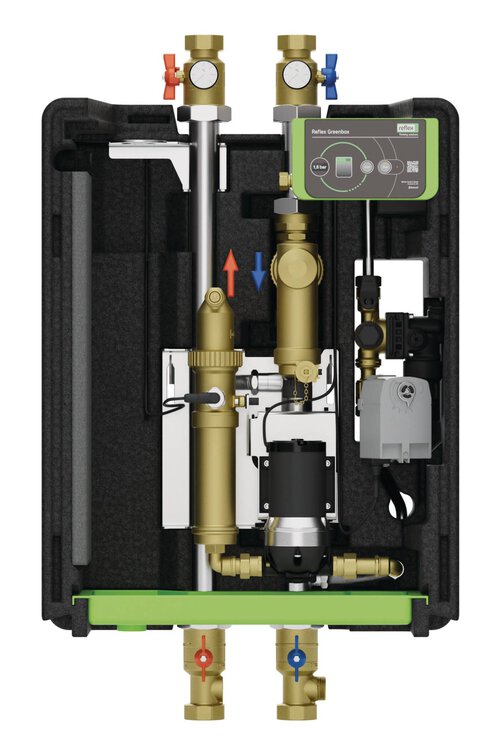

Reflex Greenbox S2, compact hydraulic module for water-carrying systems
Type
S2
Data
IFCExportAs
IfcDistributionElementType
IFCExportType
-
Weight
22.40 kg
Tender text
Reflex Greenbox Compact hydraulic module for closed heating and cooling systems. Functional unit comprising hydraulic part designed for wall mounting and electronic, ergonomically arranged controller with CE marking. The fully automatic hydraulic module offers the following functions in a compact housing with EPP insulation shell: -Vacuum spray tube degassing of dissolved gases -Automatic water make-up (with integrated system separator) -Dirt, sludge and magnetite separation -Controller with troubleshooting wizard and history in the app -Static pressure maintenance connection (MAG (expansion vessel)) -Temperature and pressure measurement -Optional pressure reducer for the system separator -Bluetooth connectivity
Electric connection
230V/50Hz
ETIMClass 9.0
EC004089
Export Type to IFC As
IfcDistributionElementType
Max. flow/return temperature
90/70 °C
Max. system volume
3.5 m³
Max. volume flow
4.3 m³/h
Type IFC Predefined Type
USERDEFINED
