Reflex G

De construção idêntica ao Reflex N, com exceção da membrana substituível, que cumpre todos os requisitos de acordo com as inspeções periódicas para vasos de grandes dimensões.

8510206Reflex G 400 GY 16/3.5b DN40/PN168518000Reflex G 100 GY 10/3.5b G1"8518100Reflex G 200 GY 10/3.5b G 1 1/4"8518200Reflex G 300 GY 10/3.5b G 1 1/4"8518400Reflex G 100 GY 16/3.5b DN25/PN168518500Reflex G 200 GY 16/3.5b DN25/PN168518600Reflex G 300 GY 16/3.5b DN25/PN168518700Reflex G 500 GY 16/3.5b DN40/PN168519000Reflex G 100 GY 6/3.5b G1"8519100Reflex G 200 GY 6/3.5b G 1 1/4"8519200Reflex G 300 GY 6/3.5b G 1 1/4"8521005Reflex G 400 GY 10/3.5b G 1 1/4"8521006Reflex G 500 GY 10/3.5b G 1 1/4"8521605Reflex G 400 GY 6/3.5b G1"8521705Reflex G 500 GY 6/3.5b G1"8522006Reflex G 600 GY 10/3.5b G 1 1/2"8522007Reflex G 600 GY 16/3.5b DN40/PN168522605Reflex G 600 GY 6/3.5b G1"8523005Reflex G 800 GY 10/2b G 1 1/2"8523610Reflex G 800 GY 6/2b G1"8523906Reflex G 800 GY 16/2b DN40/PN168524005Reflex G 1000/1000 GY 10/2b DN65/PN168524205Reflex G 1000/1000 GY 16/2b DN65/PN168524605Reflex G 1000/1000 GY 6/2b DN65/PN68526005Reflex G 1500 GY 10/2b DN65/PN168526305Reflex G 1500 GY 16/2b DN65/PN168526605Reflex G 1500 GY 6/2b DN65/PN68527005Reflex G 2000 GY 10/2b DN65/PN168527100Reflex G 2000 GY 16/2b DN65/PN168527605Reflex G 2000 GY 6/2b DN65/PN68529005Reflex G 4000 GY 10/2b DN65/PN168529405Reflex G 4000 GY 16/2b DN65/PN168529605Reflex G 4000 GY 6/2b DN65/PN68529705Reflex G 5000 GY 16/2b DN65/PN168530005Reflex G 5000 GY 10/2b DN65/PN168530605Reflex G 5000 GY 6/2b DN65/PN68544005Reflex G 3000 GY 10/2b DN65/PN168544605Reflex G 3000 GY 6/2b DN65/PN68544705Reflex G 3000 GY 16/2b DN65/PN168546005Reflex G 1000/740 GY 10/2b G 1 1/2"8546605Reflex G 1000/740 GY 6/2b G1"8546906Reflex G 1000/740 GY 16/2b DN40/PN16

Detalhes do produto

Dados de identidade
EAN code
4036705110917
Manufacturer
Reflex Winkelmann GmbH
Brand
Reflex
tipo de produto
Reflex
Ligação do produto
www.reflex-winkelmann.com/pt/productos/8523906
texto breve do artigo

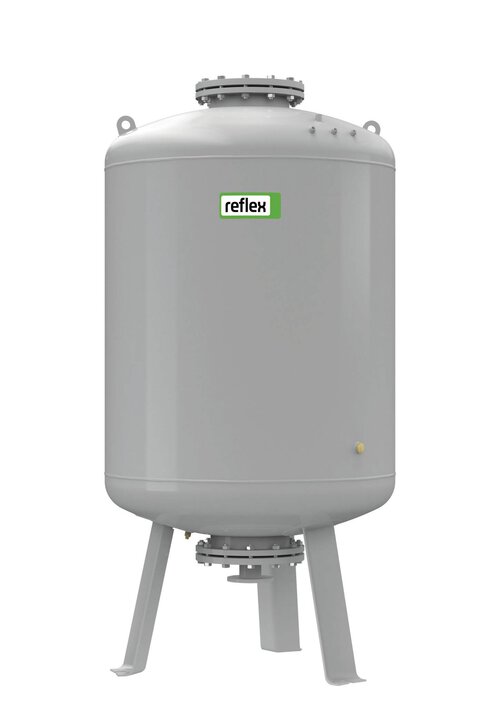

Reflex G 800, depósito de expansão sob pressão de membrana vertical, cinza, 16/2 bar
Type
G 800
Dados
IFCExportAs
IfcTankType
IFCExportType
EXPANSION
Weight
221.00 kg
Cor
cinza
Ligação
DN40/PN16
Diâmetro
740 mm
ETIMClass 9.0
EC010958
Export Type to IFC As
IfcTankType
Volume útil máx.
588.2 l
Type IFC Predefined Type
EXPANSION
