Maintenance box
Product details
Identity data
EAN code
4036705585814
Manufacturer
Sinusverteiler GmbH
Brand
Reflex
Model
maintenance box
Product page
Description
maintenance box 80/60 for magnetite separation for small distributors
Type
80/60
Data
IFCExportAs
IfcFlowControllerType
IFCExportType
-
Weight
2.06 kg
Tender text

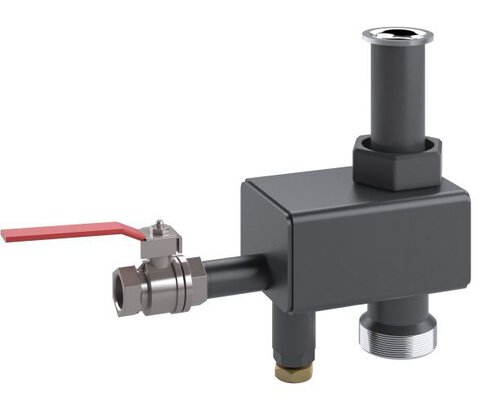

Maintenance box for magnetite desludging for all boiler and sub-manifolds, MonoFixx and HydroFixx. Enables desludging in pressurised systems. Comprising special section tube 120x80, S235 steel. Provided with a desludging nozzle and 1/2'' ball valve as well as a magnetic rod screwed into the immersion sleeve. For mounting in the main boiler return of the manifold. Including EPP insulation compliant with German energy saving ordinance (EnEV).
Export Type to IFC As
IfcFlowControllerType
Max. perm. operating pressure
4 bar
Max. perm. operating temperature
110 °C
Type IFC Predefined Type
-
