Reflex N

7202801Reflex N 8 WH 4/1.5b R 3/4"7203501Reflex N 12 WH 4/1.5b R 3/4"7204401Reflex N 18 WH 4/1.5b R 3/4"7206401Reflex N 25 WH 4/1.5b R 3/4"7208501Reflex N 35 WH 4/1.5b R 3/4"7209400Reflex N 50 WH 6/1.5b R 3/4"7210600Reflex N 80 WH 6/1.5b R 1"8202501Reflex N 8 GY 4/1.5b R 3/4"8203301Reflex N 12 GY 4/1.5b R 3/4"8204301Reflex N 18 GY 4/1.5b R 3/4"8206301Reflex N 25 GY 4/1.5b R 3/4"8208401Reflex N 35 GY 4/1.5b R 3/4"8209300Reflex N 50 GY 6/1.5b R 3/4"8210200Reflex N 80 GY 6/1.5b R 1"8211400Reflex N 140 GY 6/1.5b R 1"8213300Reflex N 200 GY 6/1.5b R 1"8214300Reflex N 250 GY 6/1.5b R 1"8215300Reflex N 300 GY 6/1.5b R 1"8216300Reflex N 100 GY 6/1.5b R 1"8218000Reflex N 400 GY 6/1.5b R 1"8218300Reflex N 500 GY 6/1.5b R 1"8218400Reflex N 600 GY 6/1.5b R 1"8218500Reflex N 800 GY 6/1.5b R 1"8218600Reflex N 1000 GY 6/1.5b R 1"

Product details

Identity data
EAN code
4036705198212
Manufacturer
Reflex Winkelmann GmbH
Brand
Reflex
Model
Reflex
Product page
www.reflex-winkelmann.com/en/products/8208401
Description

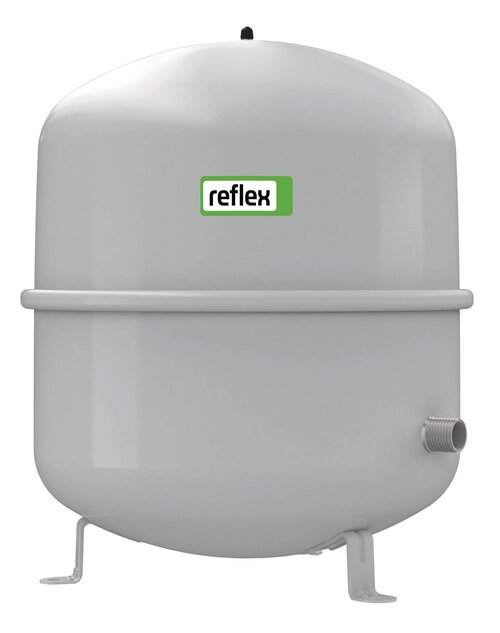

Reflex N 35, expansion vessel, grey, 4/1.5 bar
Type
N 35
Data
IFCExportAs
IfcTankType
IFCExportType
EXPANSION
Weight
5.60 kg
Tender text
Reflex N Diaphragm expansion tank for sealed heating and cold water systems. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC. -durable epoxy resin coating -non-replaceable diaphragm according to DIN EN 13831 -vertical from 35 litres -for antifreeze additive of at least 25 – 50 % -with threaded connections -max. permissible system temperature 120 °C -max. permissible operating temperature 70 °C
Colour
grey
Connection
R 3/4"
Diameter
376 mm
ETIMClass 9.0
EC010958
Export Type to IFC As
IfcTankType
Max. useful volume
31.5 l
Type IFC Predefined Type
EXPANSION
