Fillcontrol Auto Plus
Product details
Identity data
EAN code
4036705740015
Brand
Reflex
Model
Fillcontrol
Product page
Description

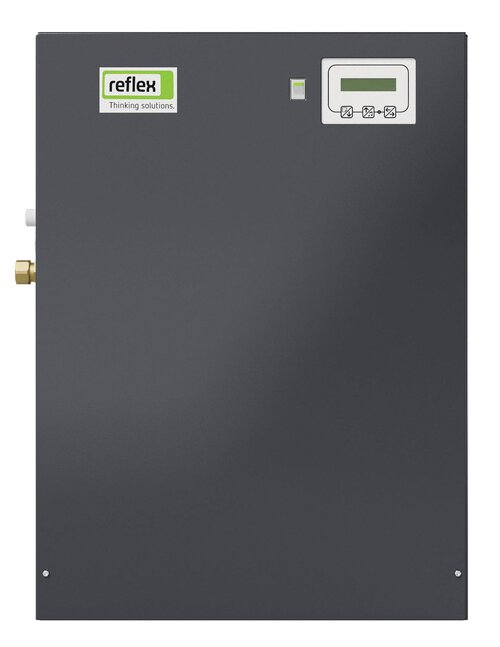

Fillcontrol Auto Plus 2/60, automatic make-up unit with two pumps and break tank for system separation
Type
Auto Plus 2/60
Data
IFCExportAs
IfcFlowControllerType
IFCExportType
-
Weight
37.50 kg
Tender text
Fillcontrol Auto Plus 2/60 Compact make-up system with 2 pumps consisting of 18 litre break tank as a system separator for connection to drinking water networks and control unit for controlling and regulating the entire unit. Pressure-controlled, controlled make-up water feed and filling function for initial filling and refilling. Type A-A system separator enables direct connection of the compact system to drinking and fresh water networks. Fully assembled and wired.
Electric connection
230V/50Hz
Export Type to IFC As
IfcControllerType
Inlet connection
1/2"
Max. perm. operating pressure
10 bar
Max. perm. operating temperature
70 °C
Max. system volume
300 m³
Outlet connection
15 mm
Type IFC Predefined Type
USERDEFINED
